Push the home button on the iPad twice then enter the code 123456 when asked.
Next steps may not be required…

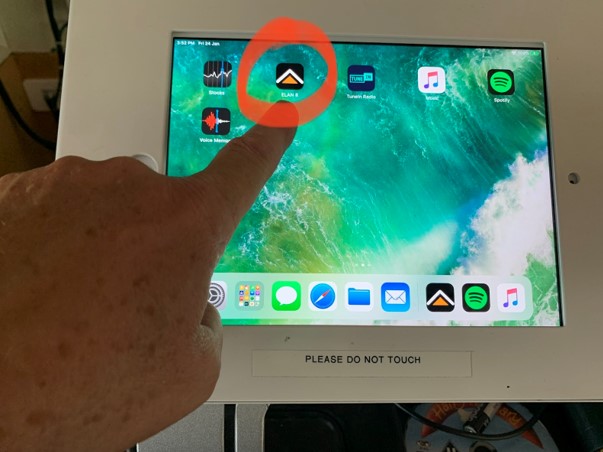

Select the ELAN 8 app (you may need to swipe across the screen to get to the page with this logo, but it’s also on the bottom toolbar.
Select the “Online Local” Controller (long alphanumeric number). If asked for a password, just hit Enter/Done without entering anything.
The Up and Down arrows top left toggle between the different speaker sets.
-Outdoor Bowls (deck speakers facing A Green), Patio (patio speakers facing B Green), Bar and Hall.

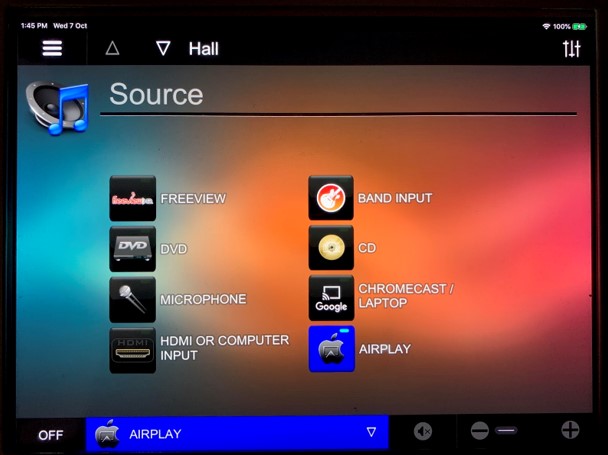

To play venue Spotify make sure that for all of these the input on the bottom left is showing AIRPLAY. If not, tap whatever is showing there (maybe Chromecast) and it’ll bring up another window where you can change it.

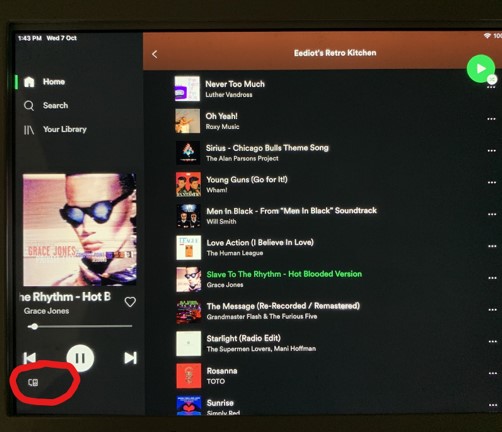

Switch to the Spotify app on the iPadSelect this and chose a Playlist, such as “Eediot’s Summer”(upbeat chill)
“Irish Club”
“Friday Evening Greens” (Upbeat 2020s)
“Eediot's Retro Kitchen” (80s-90’s pop)

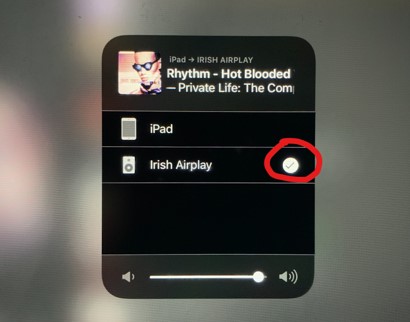

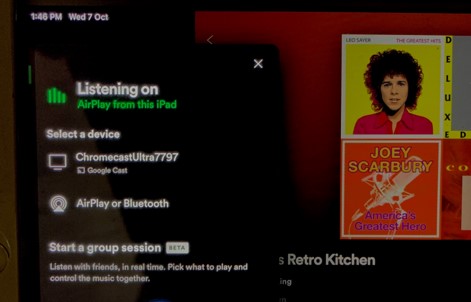

Next tap the “Listening On” icon and select “Airplay” / as the destination (if not already) then choose Irish Airplay.
Hit play and check you can hear music (in the Hall where you are is easiest) then outside. Adjust the volume using the volume control bottom right on the ELAN 8 screen.
If not hearing anything the Mute icon might be red.
The venue Spotify connection can be dodgy (it can stop temporarily or break up) so the best way to play music is from a device like a smartphone or laptop.
Connect the appropriate audio cable into the RCA sockets on the top of the AV cabinet.
There’s usually a cable there with a ‘Laptop’ tag on it- RCA at one end and mini-jack at the other to go into the phone/laptop but you can use an RCA-RCA too.
Then make sure that for all of the speaker sets you want to feed the input on the bottom left is showing HDMI OR COMPUTER INPUT
If not, tap whatever is showing there (maybe Airplay) and it’ll bring up another window where you can change it.
Then wind the volume to full on your device, hit play and adjust the volume on the speakers controls bottom right of the iPad display.
NB: Even if inputting an HDMI signal (from a DVD player or laptop) audio for it must be input separately via the RCA inputs- audio is not taken form the HDMI connection.
